JACKS AND PLUGS
2.5MM SINGLE MONO AND STEREO JACKS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
2.5MM SINGLE MONO AND STEREO JACKS
Switchcraft introduces a new series of 2.5mm jacks. These low
profile jacks come in a wide variety of circuits, both 2 and
3 conductor versions. Circuits include mono closed, stereo open,
stereo tip closed and ring open, and stereo closed. The MDSMT
Series is available on tape and reel only. Contact Switchcraft for
exact dimensions of the reels. They’re designed for use in today’s
electronic equipment that features remote speakers, headsets, and
headphones. While they are more compact than commonly used
PC mount phone jacks, they are still extremely durable.
FEATURES AND BENEFITS
? SMT mounting
? Tape and reel packaging
? Wide variety of circuits
APPLICATIONS
? Computer
? Video Cameras
? Personal/Portable Audio Devices
? Multimedia
SPECIFICATIONS
Electrical Current Rating: 3A
Contact Resistance: <50 mohms
Insulation Resistance: 100 mohms (min.)
Dielectric Withstanding Voltage:
250VAC @ 1 minute
MECHANICAL
Lifecycles: 5,000
Operating Temperature: -25°C to +85°C
MATERIAL
Housing: Black thermoplastic
Sleeve, Ring and Tip Terminals:
Copper Alloy, silver-plated
Shunt Terminal: Copper Alloy, Silver-plated

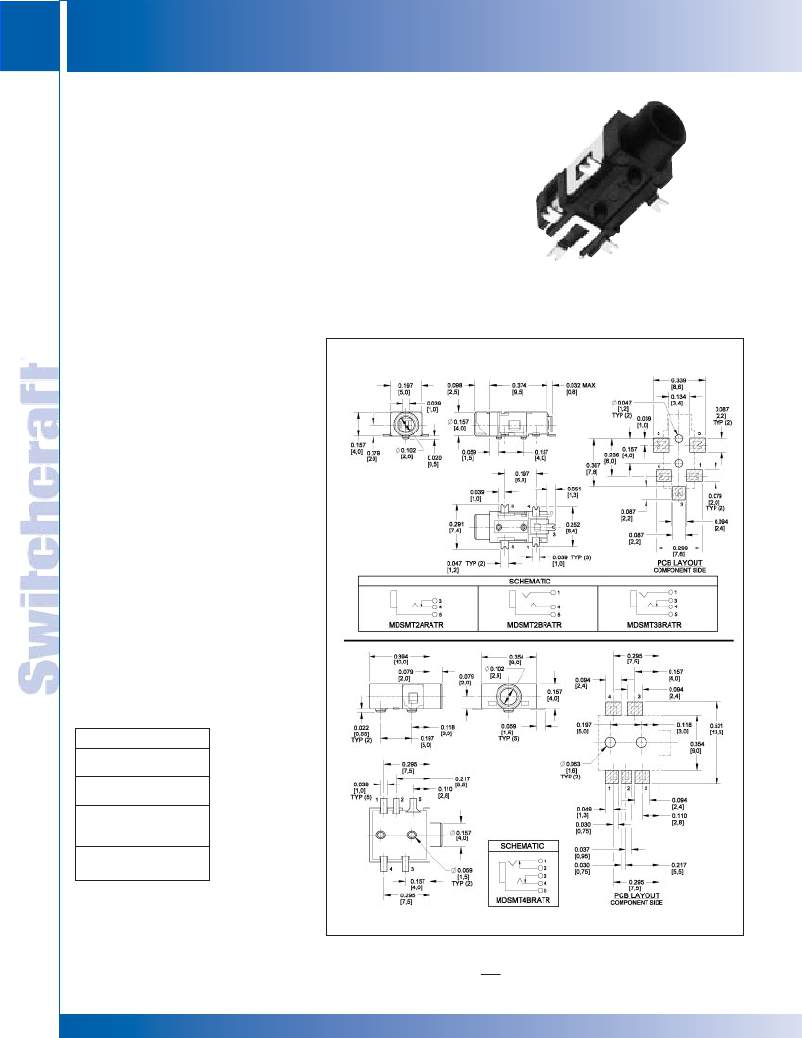

2.5MM SINGLE MONO
AND STEREO JACKS
Part Number/Description
MDSMT2BRATR
Stereo, dual open circuit
MDSMT2ARATR
Mono, closed circuit
MDSMT3BRATR
Stereo, tip closed and
ring open circuit
MDSMT4BRATR
Stereo, dual closed circuit
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
MDSMT4BRATR
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
